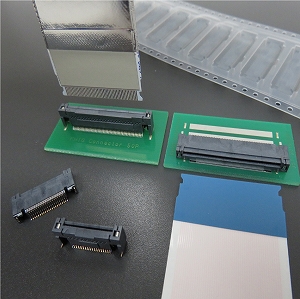

FHTG CONNECTOR 0.5mm Pitch Non-ZIF Connector for FFC

Features
Specification
Downloads
Samples

By providing a unique lock mechanism for confirming the mating, it is possible to insert the FFC with one action and pull out the FFC without unlocking, realizing good workability.

• Lock mechanism requiring no unlocking operation when pulling out

• Completion of FFC insertion can be visually confirmed

• Compatible with shielded FFC

• Improvement of FFC guide performance and retention force against routing

• RoHS Compliant

01 - Connection Type:	Printed Circuit Board Connectors
02 - Product Type:	FFC/FPC Connectors
03 - Pitch / Style:	0.50mm
04 - Current rating:	0.5A AC,DC
05 - Voltage rating:	50V AC,DC
06 - Temperature range:	-25 to +85 Degrees Celsius
07 - Available number of circuits:	20 to 50
11 - Feature:	Non-ZIF Type
13 - PCB Mount Style:	Surface Mount Technology (SMT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page 2) Handling Manual 3) 2D Drawing 4) 3D Model
